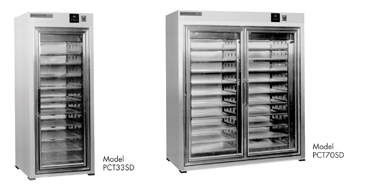

Protein Crystal Growth Chambers

Protein crystals have been grown in our chambers for over 20 years. The uniform temperature and low vibration environment these models provide allows for optimum crystalline development.

Ten lipped stainless steel trays per door offer 38 or 76 ft2 of shelf space, with horizontal air flow across each tray. Microprocessor temperature control combined with horizontal air flow maintains uniformity to ±1°C of setpoint. A hi/low alarm monitors chamber temperature and electronic failsafes shut it down to preserve temperature in the rare event of a temperature excursion. These models sit on vibration absorbing pads to isolate them from floor vibrations, and metal to metal contact inside the chamber is also dampened. Options such as a chart recorder, RS-232 or re-transmits for computer monitoring and recording, solid doors, access ports, lockable Plexiglas© control cover, etc. are available.
